PTB AC Power T Cable 40A M25 to EN100 1 T Ferrite 6.0'
$78.85
### PTB AC Power T Cable 40A M25 to EN100 1 T Ferrite 6.0'
Smarter, Simpler, Safer, Significant Savings…
The 40 AMP PHOTOBIO AC Power Distribution Tree enables multiple LED fixtures to be daisy chained from centralized 40 AMP drops.- The modular system provides significant cost savings on electrical infrastructure and labor while offering superior safety and flexibility versus traditional NEMA power plugs and outlets.-
Designed to excel in rigorous Indoor Farm and Greenhouse conditions, the PHOTOBIO AC Power Distribution-Tree connections are all locking IP67 rated resulting in complete dust protection and protection against temporary submersion in water. The system is designed with EMC suppression technology to mitigate electromagnetic interference, is UV resistant, designed for use up to 480V, and is UL listed.

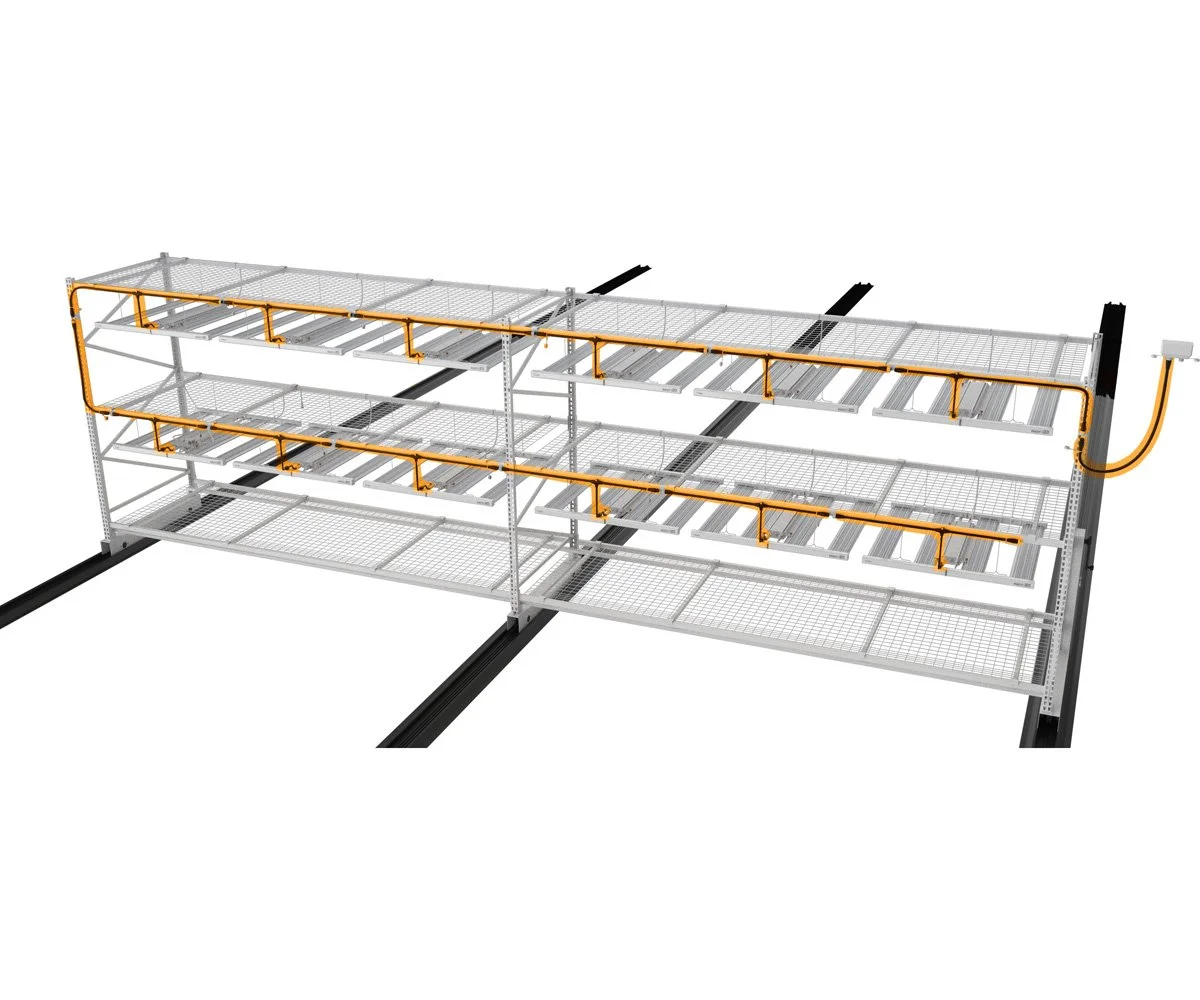

Each 40 AMP Tree starts with the “Roots” or PHOTOBIO Panel Mount Pig Tail, which is hardwired into a ceiling mounted junction box supplied with minimum 40 AMP service by a licensed electrician working with an electrical engineer.- After the initial junction box tie in, the AC Power Distribution Tree is fully plug and play, providing fast and easy daisy chain connections. “Trunk” Power Link cables and “Trunk with Branch” Power T cables are used in combination to suit your unique needs. Hydrofarm’s grower-centric, full-service lighting design services are complimentary and ensure our-customers always succeed. Contact Us
Compatible with PHOTOBIO MX, CX, TX, T, and Phantom PHENO LED and PHANTOM DE 60 Series 277-400V HID fixtures.- Installation and service by a licensed electrician only in accordance with manufacturer specifications.
This item, the PHOTOBIO AC Power T Cable is a linkable 6.0’ long “Trunk” line with 1.5’ long “Branch” line that allows AC supply to interconnect multiple PHOTOBIO fixtures on a single AC circuit.- Power T Cables are used in a 1:1 ratio one fixture to one Power T and provide Male to Female daisy chain of “Trunk” line for connection to either Panel Mount, Power Link Cable, or Power T Cable from adjacent fixture.
Features heavy duty 6.0’ 10AWG braided flexible copper wiring with 40A capacity, convenient M25 female to EN100 male locking connection.
Cable and connections rated IP67 for enhanced dust and water protection.
* Do not exceed the maximum number of devices as shown below:
VOLTAGE
MAXIMUM NUMBER OF DEVICES PER 40A CIRCUIT
330W
680W
850W
1050W
1200W
120V
10
5
4
3
2
208V
18
9
7
6
5
240V
22
11
8
7
6
277V
24
12
9
8
7
347V
32
16
12
10
9
480V
44
22
17
14
12
Quantity:
